Description

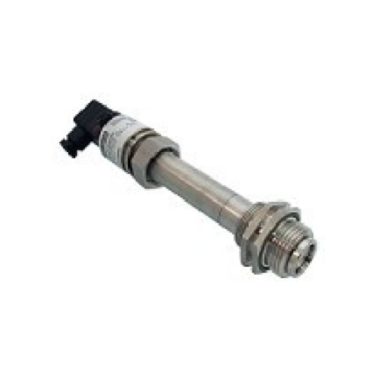

SATRON VB is user-friendly, through the ball valve mounted transmitter which is used for 0-4 kPa ... 0-3 MPa ranges. The transmitter communicates in a 2-wire system. In pressure measuring applications SATRON VB transmitter is used for measuring the pressure of gases, steams and sedimenting, crystallizing and sticking liquids. The transmitter's sensor is piezoresistive. The rangeability of themodel VB6 is 100:1. The transmitter communicates digitally using the HART® protocol.
Measuring Range: -0,1...3 MPa
Adjustability: 0-4 kPa...0-3 MPa
Applicability: Measuring the pressure of gases, steams and sedimenting crystallizing and sticking liquids
Mounting: Through the ball valve mounted
