Description

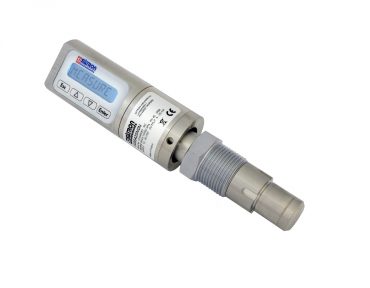

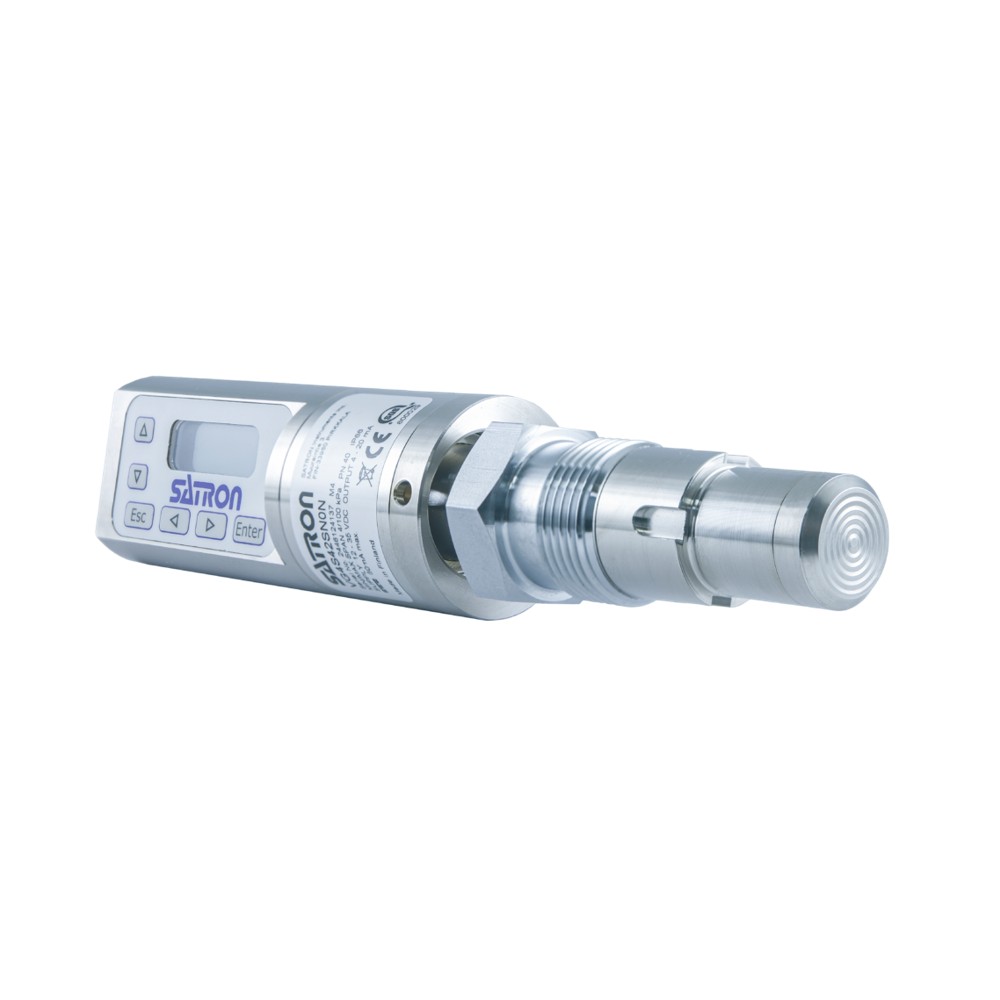

Level pressure sensor VG From Satron instrument www.satron.com
Satron VG is part of the V transmitter series with both analog and smart properties. In pressure measurements the VG can be used for measuring the pressure of clean, sedimenting, crystallizing and sticking materials.
Satron VG is used for 0-1.4 kPa…0-25 MPa ranges. The transmitter communicates in a 2-wire system. The transmitter’s sensor is piezoresistive. The rangeability is 25:1. The transmitter communicates digitally using the HART® protocol. Satron VG transmitter is suitable to use with PASVE® mounting valve.
Measuring Range: -0,1…+25 MPa
Adjustability: 0-1,4 kPa…0-25 MPa
Applicability: Clean, sedimenting, crystallizing and sticking materials
Power : 24VDC
Output : 4-20mA loop power
HART compatible
Process connections : 1.5", 2",2.5", 3" Tri-clamp, tuchenhagen, flange, I-line
Material: AISI316L (standard), Duplex, Tantalum, HAST, Titanium
Certificates: UL, EHEDG, 3A, CA, FDA approved seals
Display options: no display, local display, remote display. Water proof option for sumps.
